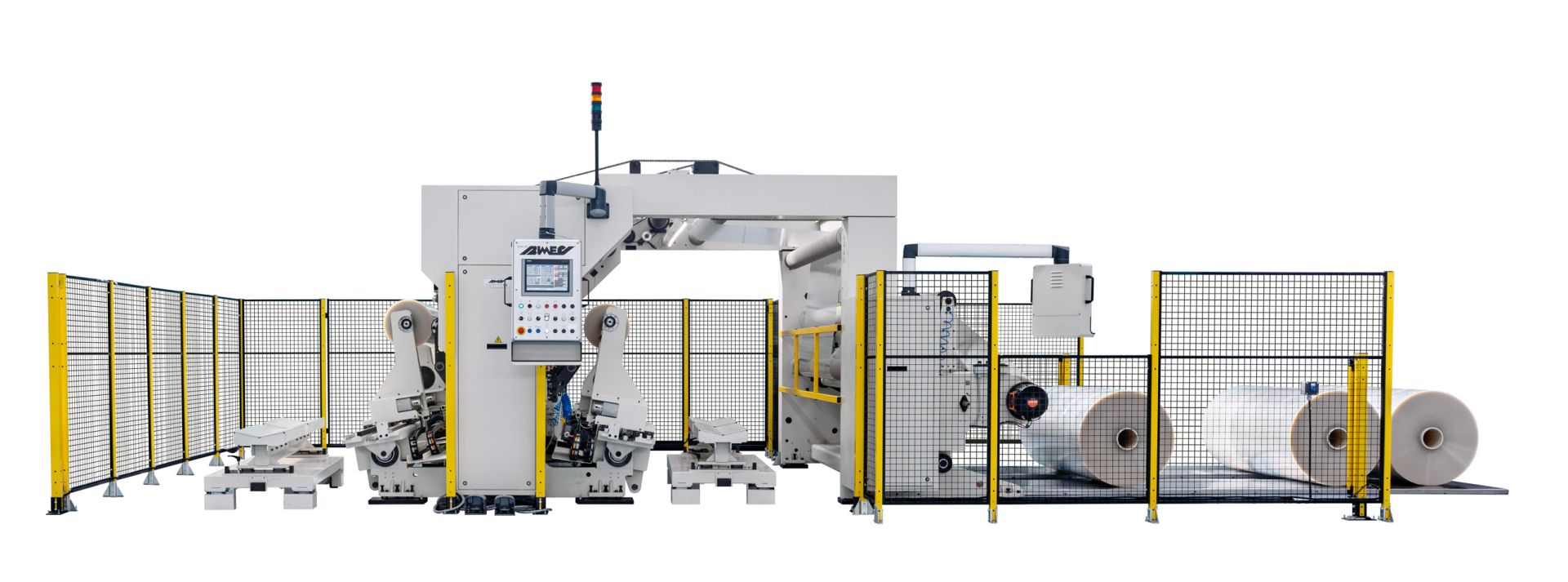

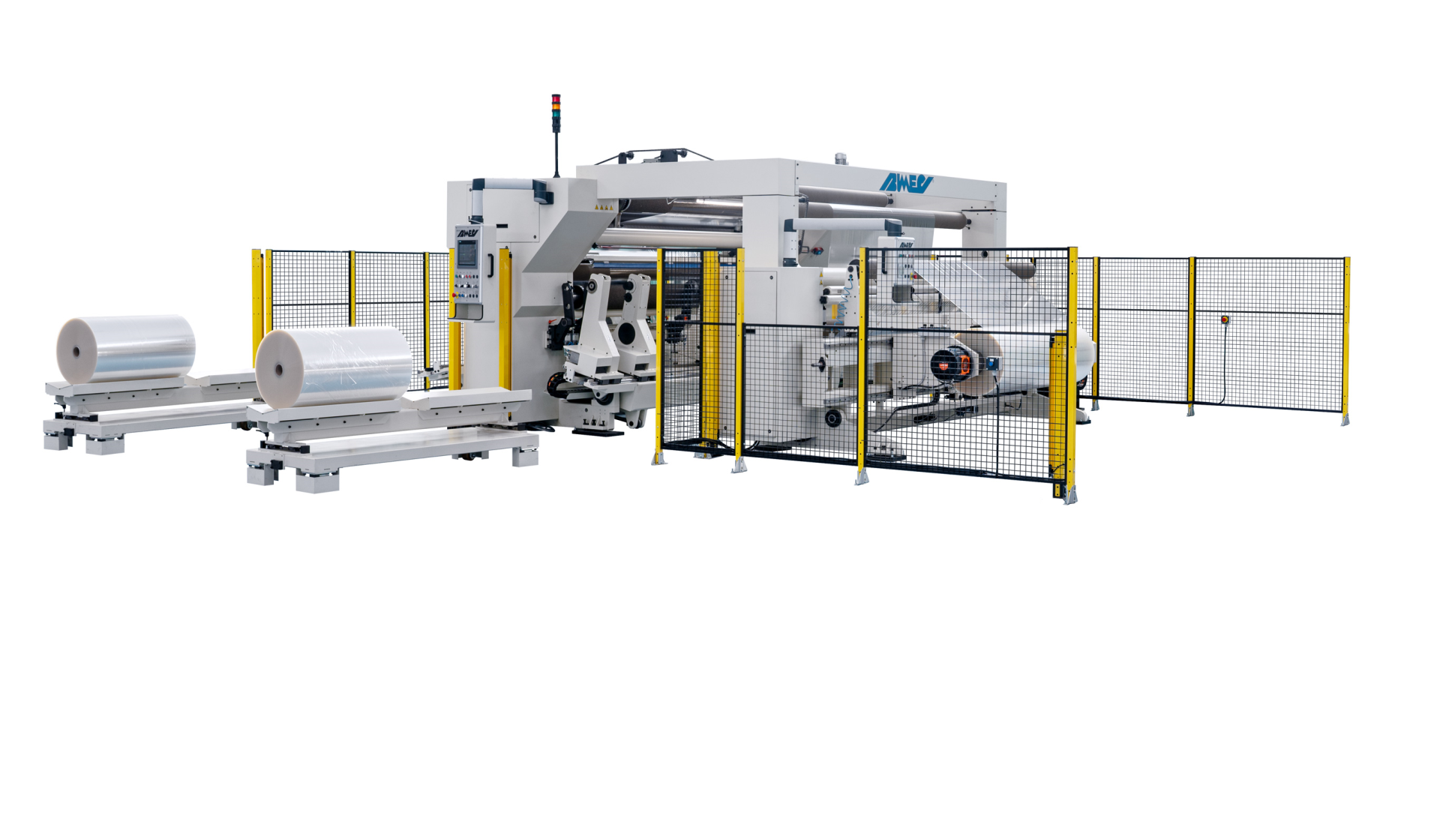

BTS 100
Slitter rewinder with central winding and overhead web path, suitable for cutting plastic film on large reels (finished reel diameter up to 1000 mm)
- Heavy-duty slitter for wide web widhts and large roll diameters incorporating centre rewind on separately driven rewind arms
- Overhead web path

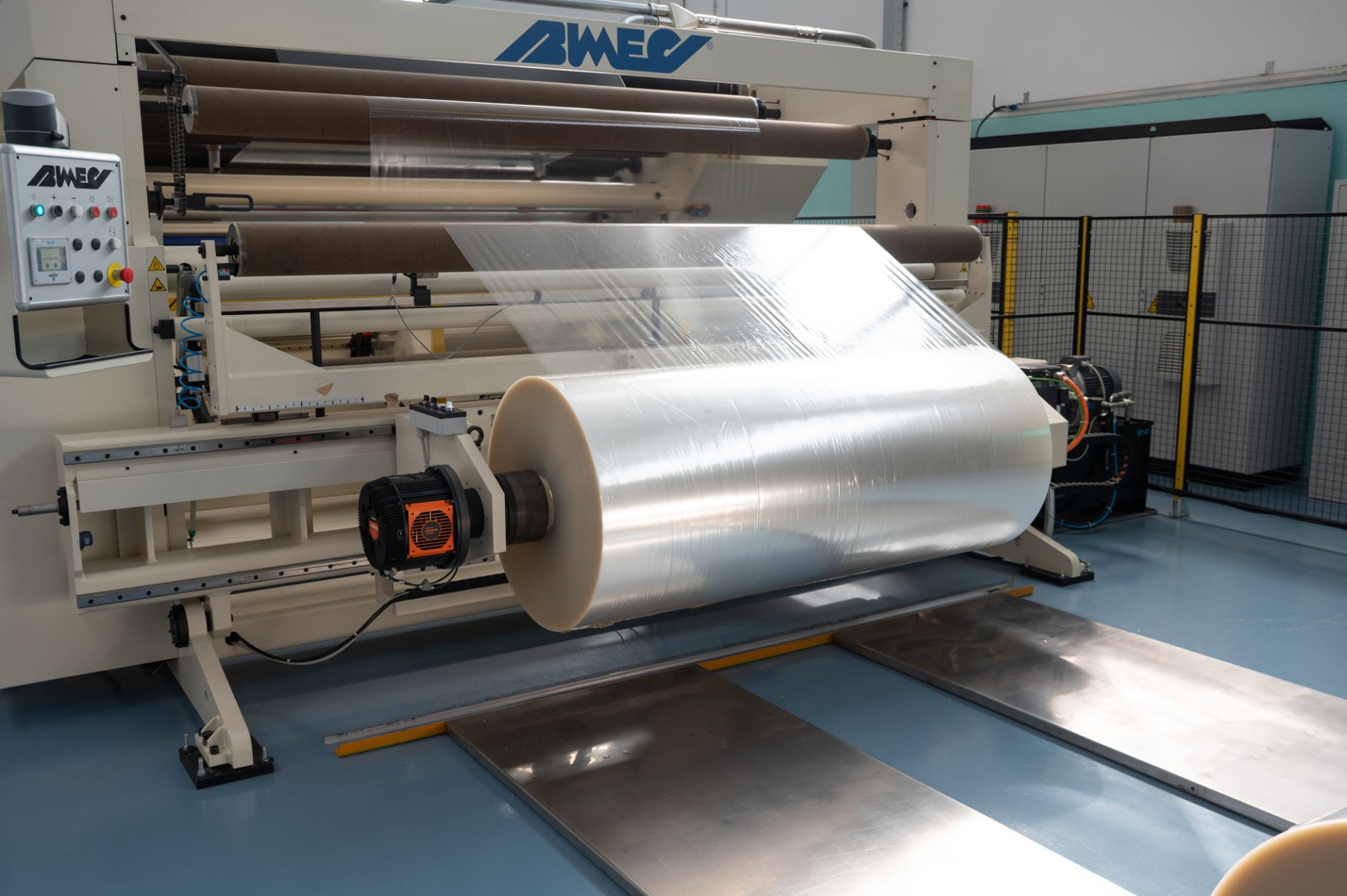

- Shaftless unwind stand with regenerative self-braking motor
- Fully programmable automatically controlled tension system

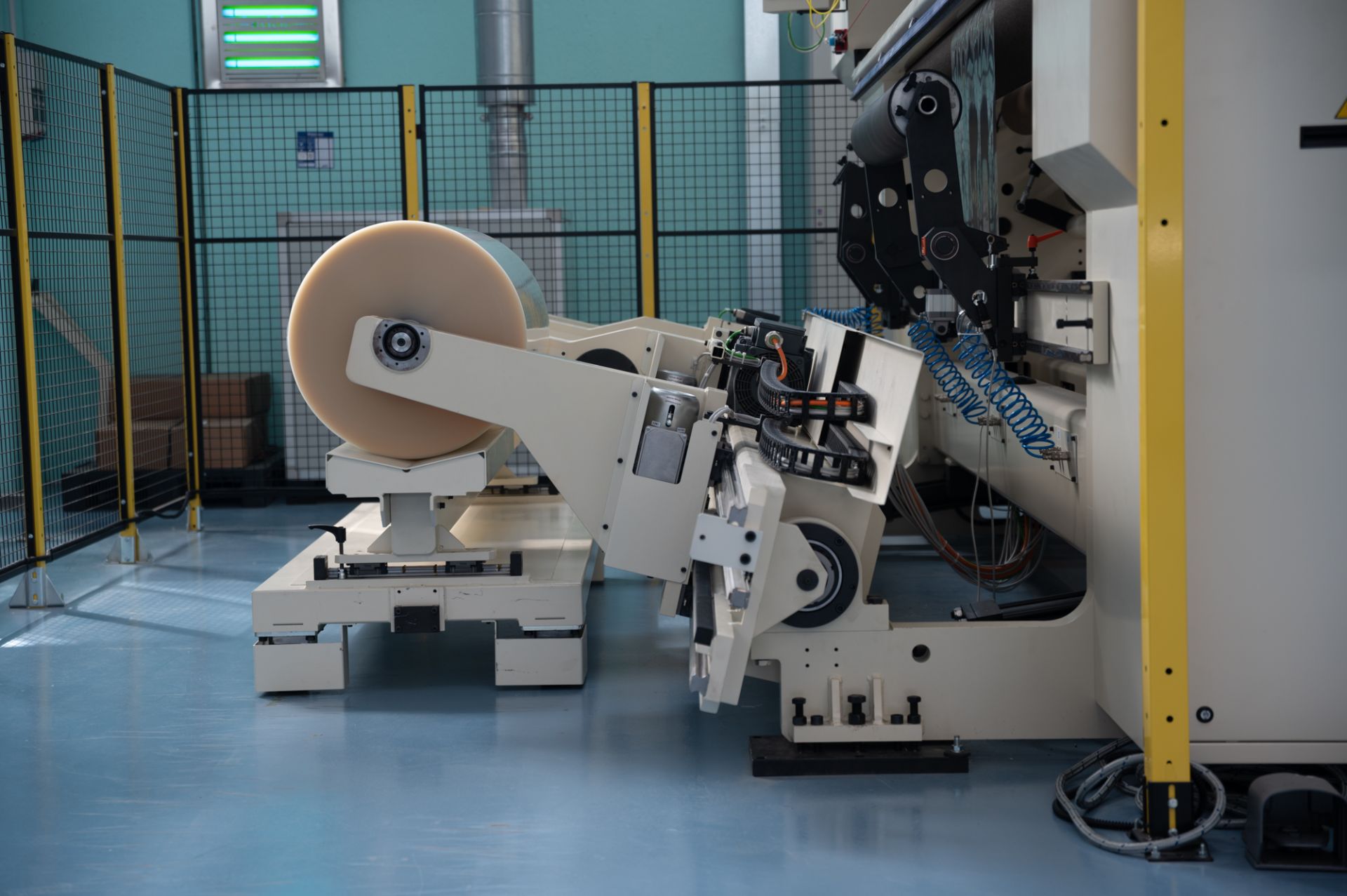

- Individually driven motorized rewind arms

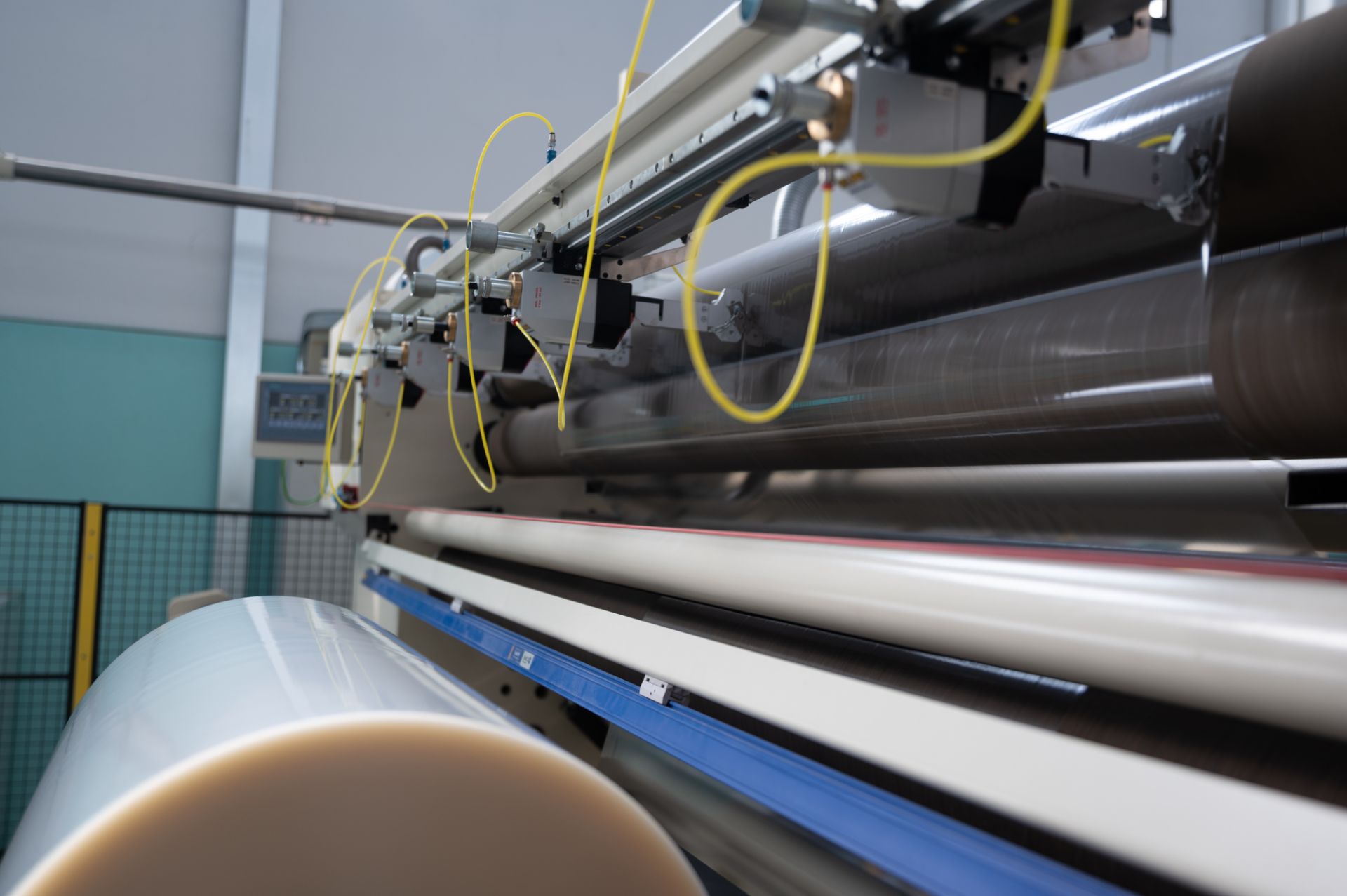

- Precision set-up systems for the slitting unit and rewind stations available
- Programming and setting operations easily accessible
- Trolley system for quick unloading of finished rolls
| TECHNICAL DATA | BTS 100 |
| Web widths | from 94" to 125" |
| Max unwind roll diameter | 40" (48") |
| Max rewind roll diameter | 40" |
| Max machine speed | 1968 fpm |
